JOWA Seaguard Bilge Alarm
Separator Spares & Equipment, LLC is an Authorized JOWA Distributor and Factory Authorized Service Center. JOWA is a Swedish company in the maritime industry, specializing in oily water treatment systems, waste treatment systems, and freshwater treatment systems.

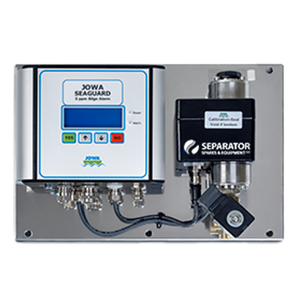

JOWA Seaguard Bilge Alarm
The JOWA Seaguard 15 ppm bilge alarm is designed to monitor the effluent from a bilge water separator. The alarm is approved to IMO MEPC 107(49).
There are two (2) alarm signals triggered by the ppm oil content in the separators’ effluent. The JOWA Seaguard has a cleaning function and an auto-flush designed to keep the sensor as clean as possible. The auto flush occurs automatically. The JOWA Seaguard log is controlled by a signal from the separator and is saved on a removable SD card.
JOWA Seaguard Bilge Alarm
Marine Oil Content Monitor
Model and Specifications
| JOWA Seaguard Bilge Alarm Specifications | |
| Range: | 0-30 ppm, trend up to 40 ppm |
| Approval/Accuracy: | According to IMO MEPC.107(49) |
| Display: | 20 x 4 characters LCD with Backlight |
| Power Supply: | 115-230 VAC 50/60Hz Automatic voltage selection |
| Power Consumption: | <15 VA |
| Alarm Points 1 + 2: Factory setting 15ppm | Adjustable between 0-15ppm |
| Alarm 2 Operating delay: (for annunciation purposes) | Adjustable between 0-540 seconds Factory setting 0 seconds |
| Alarm 1 Operating delay: (for control purposes) | Adjustable between 0-10 seconds Factory setting 0 seconds |
| System fault alarm: | Red LED light (flashing) |
| Alarm contact Rating: | Potential free 1 pole change over contacts; 6A/250V |
| Alarm indication: | In LCD & Red LED light |
| Output signal: | 0 – 20mA or 4 – 20mA for 0 – 40ppm, ext. load max 150 Ω |
| Sample water pressure: | Nominal 2 bar |
| Sample Flow: | Nominal. 2l/min depending on pressure |
| Ambient temperature: | +1 to +60 degrees Celsius |
| Sample water temperature: | +1 to +60 degrees Celsius |
| Roll: | Up to 45 degrees |
| Size: | 360 x 240 x 150, LxWxD |
| Degree of Protection: | IP 65 |
| Weight: | 7.5 kg |
| Pipe Connections: | R 1/4" Female |
* Type approved by: DNV, USCG, RMRS, and CCS
